Air operated grease lubricator pneumatic Festo type Oil lubricated for air compressor Admin Edit

5.0 USD
Min. Order: 10 Piece/Pieces
Trade Term: EXW
Payment Terms: L/C, T/T, paypal, WU
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 10000 pieces in a...
Packing: carton with any logo Delivery Date: 2-15 days
Brand Name: GOGO Fluid: Air
Operating Temperature: 5~60°C Port: 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Working pressure: 0-16bar Grade of Filtration: 40um 5um
Sealing materials: NBR Body material: Aluminum Alloy
Drain function: Manual drain and Auto drain

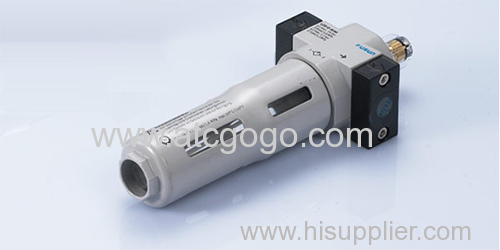

Air operated grease lubricator pneumatic Festo type Oil lubricated for air compressor

1:Festo Type Air Source Treatment / Air Lubricator
2:widely used in machinery.
3:Port size:G1/8 to G1.
4:1 year warranty

Air operated grease lubricator

1.Order


2.Specification

Festo Type Air Source Treatment / Air Lubricator

The OU consisted of OFR and OL,each unit can be ordered separately.

The OF with water separator cleans the compressed air of fluid oil,condensation and dirt particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.

The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.

The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation.The oil drip rate is controlled by the adjustable bolt.Normally,1to 12 drops /1000L of the air is sufficient.



Features:

1.Dimension and size are the same with FESTO. Can beequivalent to FESTO.
2.With lower price and goodquality.

3.Full sizes. Speedy delivery. Can make according tocustomers' requirements

4.Proof Pressure: 1.6Mpa

5.Pressure Range: 0.05-1.2MPa

6.Temperature Range: 5-60°C

7.Port Size: Mini-1/8", 1/4", 3/8";  Midi-1/4", 3/8", 1/2", 3/4"

8.Min. Standard Normal Flow Rate: Miini: 3L/min;  Midi: 6L/min

9.Material Infomation: Housing: Zinc die-casting;

                                     Filter bowl and oil bowl: PC;

                                     Metal Protective Hood: Aluminium alloy;

                                     Adjusting knob: POM

                                     Sealing: NBR;






SizeMINIMIDIMAXI
MediumCompressed air
Features of structureThe direct constant-density lubricator
Mounting typePipe mounting or foot mounting
Assembly positionVertical ±5°
ConnectionG1/8G1/4G3/8G3/8G1/2G3/4G3/4G1
Standard nominal flow rate13002300270055006100630084009000
Max. Working pressure16bar
Min. Standard nominal flow rate3 l/min6 l/min10 l/min
Max.Condensate capacity22ml43ml80ml
Temperature range0~60°C
Materials informationHousing:Zinc die-casting;Oil bowl and Drip cap:PC;Metal bowl guard:Aluminium alloy;Sealing:NBR
Recommended oilISO VG 32 or the same grade

3.Dimensions

LOE-1/4-D-MINI air lubricator for tetra pak filling machine


4.Packaging & Shipping

  • Inner packing: opp bag, then carton box for each product

  • Outer packing: export standard carton, Foam outside protecting the goods against damage

  • Usually we ship your order by sea or by air...

  • We do our best to ship your order within 1 week after receiving your payment

  • We'll tell you the tracking number once your order has been sent

  • We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal

5.About us

1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok

5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase.

We will resolve any problems such as damaged, not as described, missing parts, and lost items.

All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays.

If you have any other requirements or questions, welcome to visit our website, or just contact

with us directly. Thank you!

Oil lubricated for air compressor


Air operated grease lubricator pneumatic Festo type Oil lubricated for air compressor

Air operated grease lubricator pneumatic Festo type Oil lubricated for air compressor

OL
